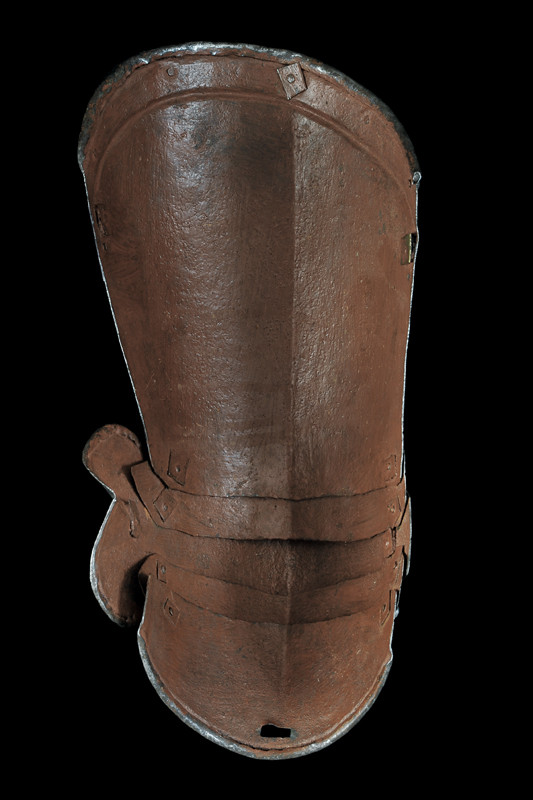

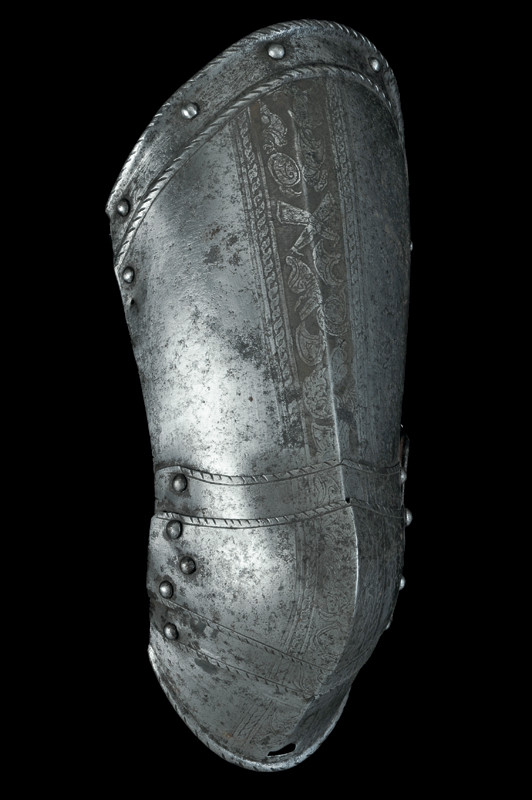

Comprising a one-piece cuisse with poleyn of 4 plates. The cop of deeply rounded form with a small wing. The edge of the cop rises to a point at the center, the outer edge of the lames are cut to form a point in the center and points over the rivets. The top edge of the cuisse, wing and bottom plate with inward-turned rolled roped edges. The rolls are fairly even, the one on the top of the cuisse does taper a little bit. The rolls on the edge of the cop wing are full rolls on the flat portion of the wing but they flatten out and finally disappear in the indented area. The cuisse is shaped to the thigh, creased at the center and has an additional raised and roped line parallel to the top edge. The leg has a band of etched decoration in the form of a set of trophies of armour flanked by roped bands along the center line. The band between the top roll and roped line is etched with a foliate design. The edges of the cop and lame are filed with a simple roped decoration and have notches at the center crease. There are single filed notches on the inner ends of the cop, lame, lower plate and cuisse. The image of the leg with the knee bent illustrates the extent of motion allowed by the armour (almost, it does move a little more under pressure). Strap mounting rivets remain near the top of the cuisse and on the cop. The lower lame has a central slot to be secured to the greave.
Height 14 1/4 in. tall.
Generally varies between .030 and .050 inch thick, mostly .035-.040 in. with some places where it is as thin as .020 in. on the lower plate.
