Breastplate with fauld 1520

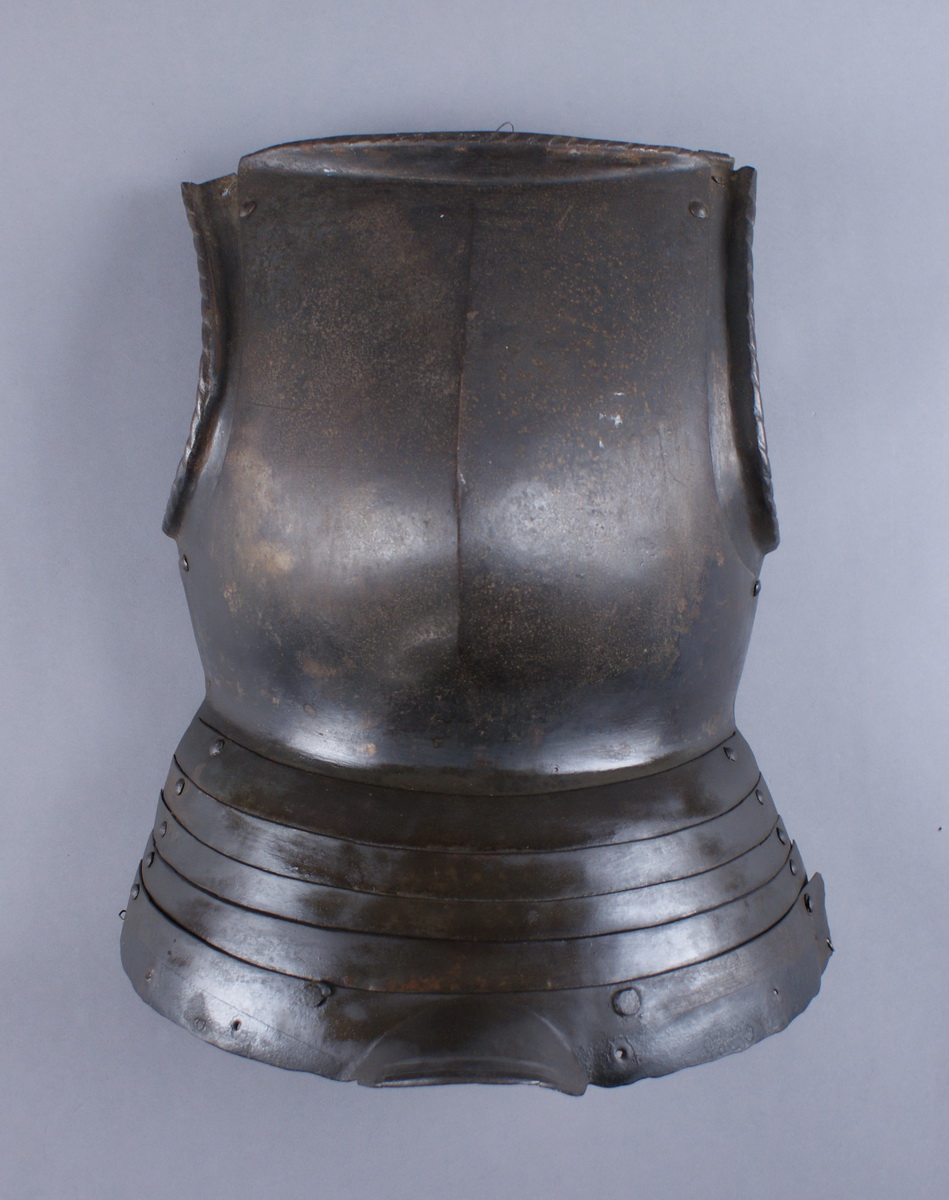

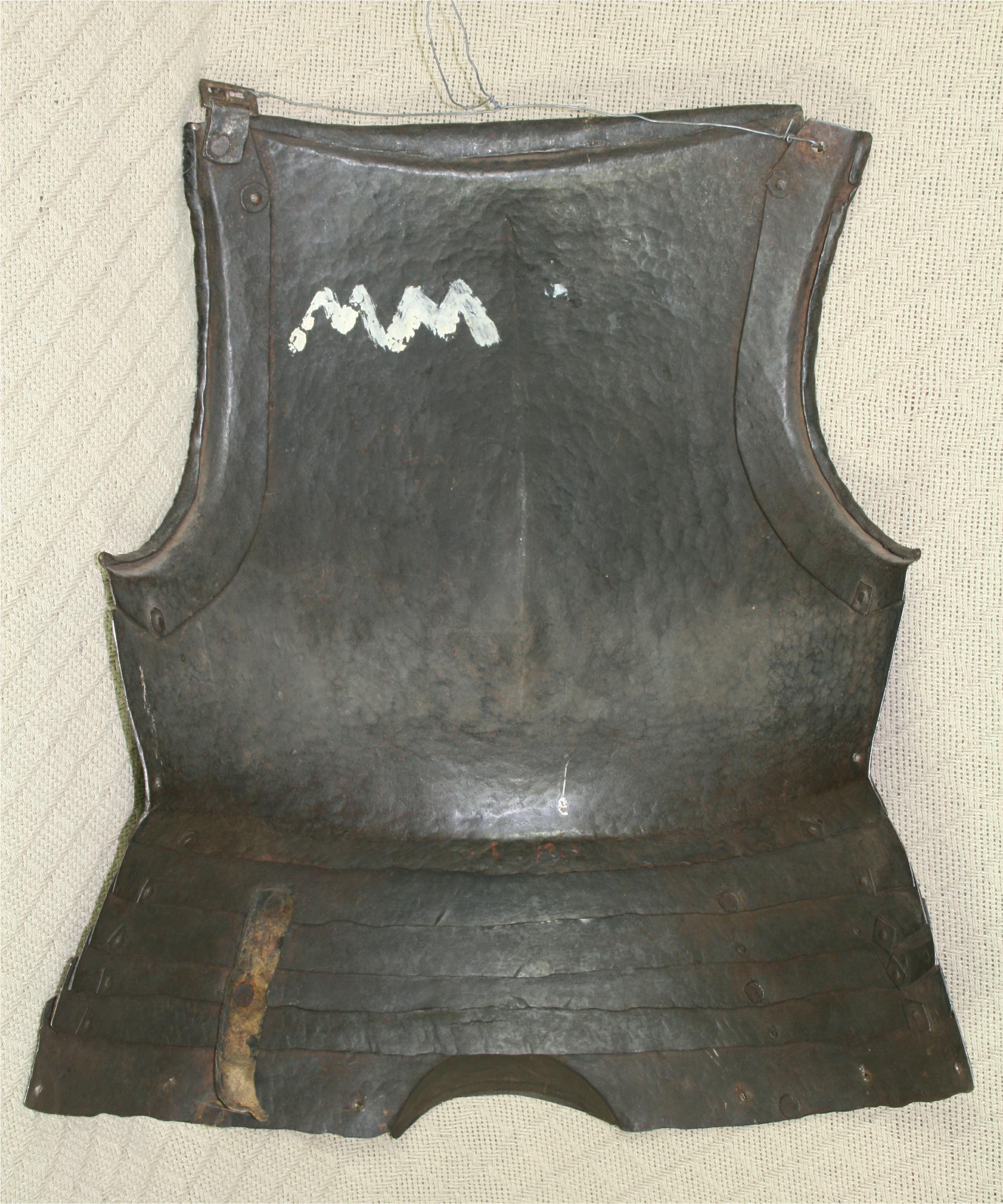

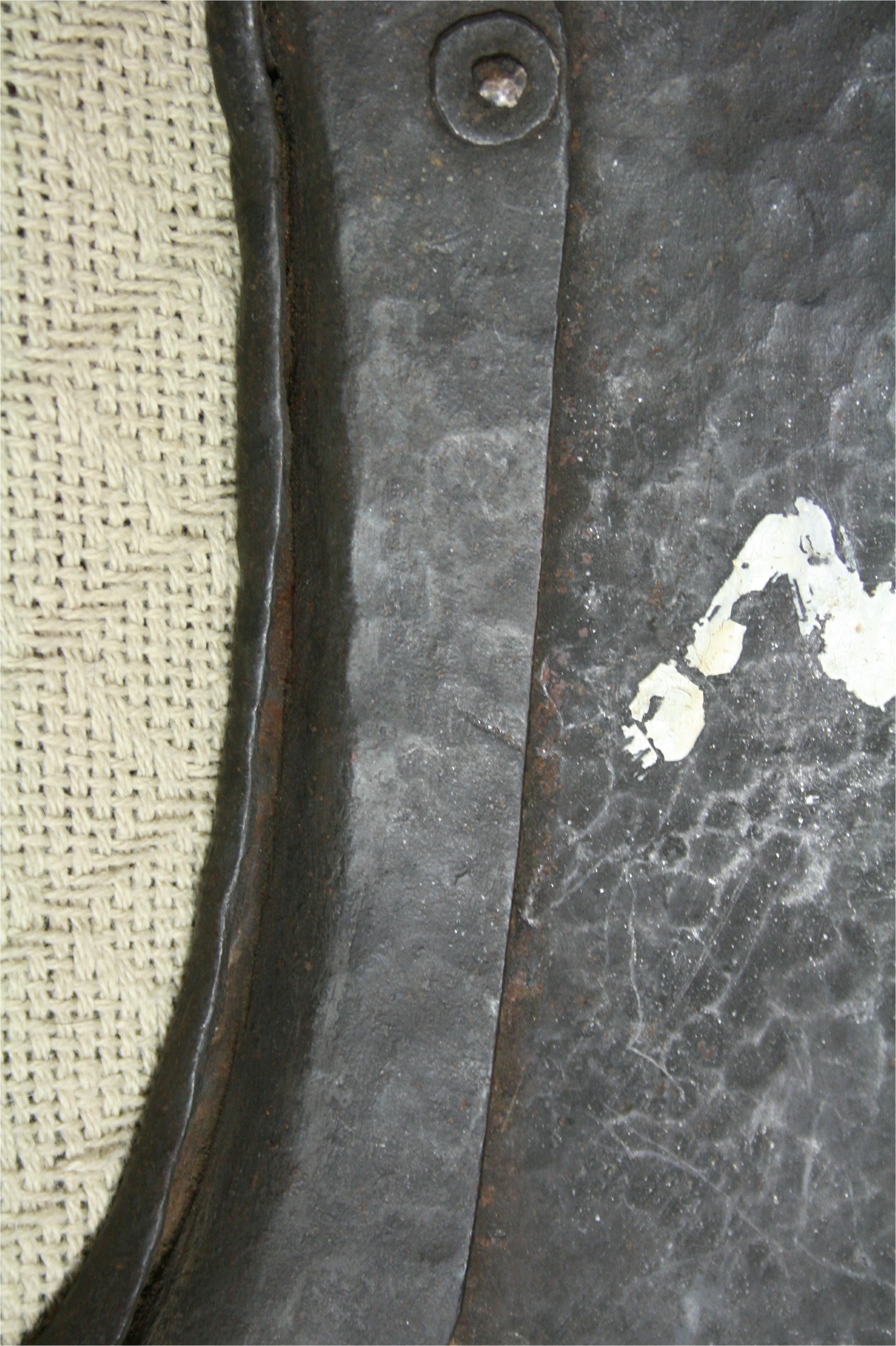

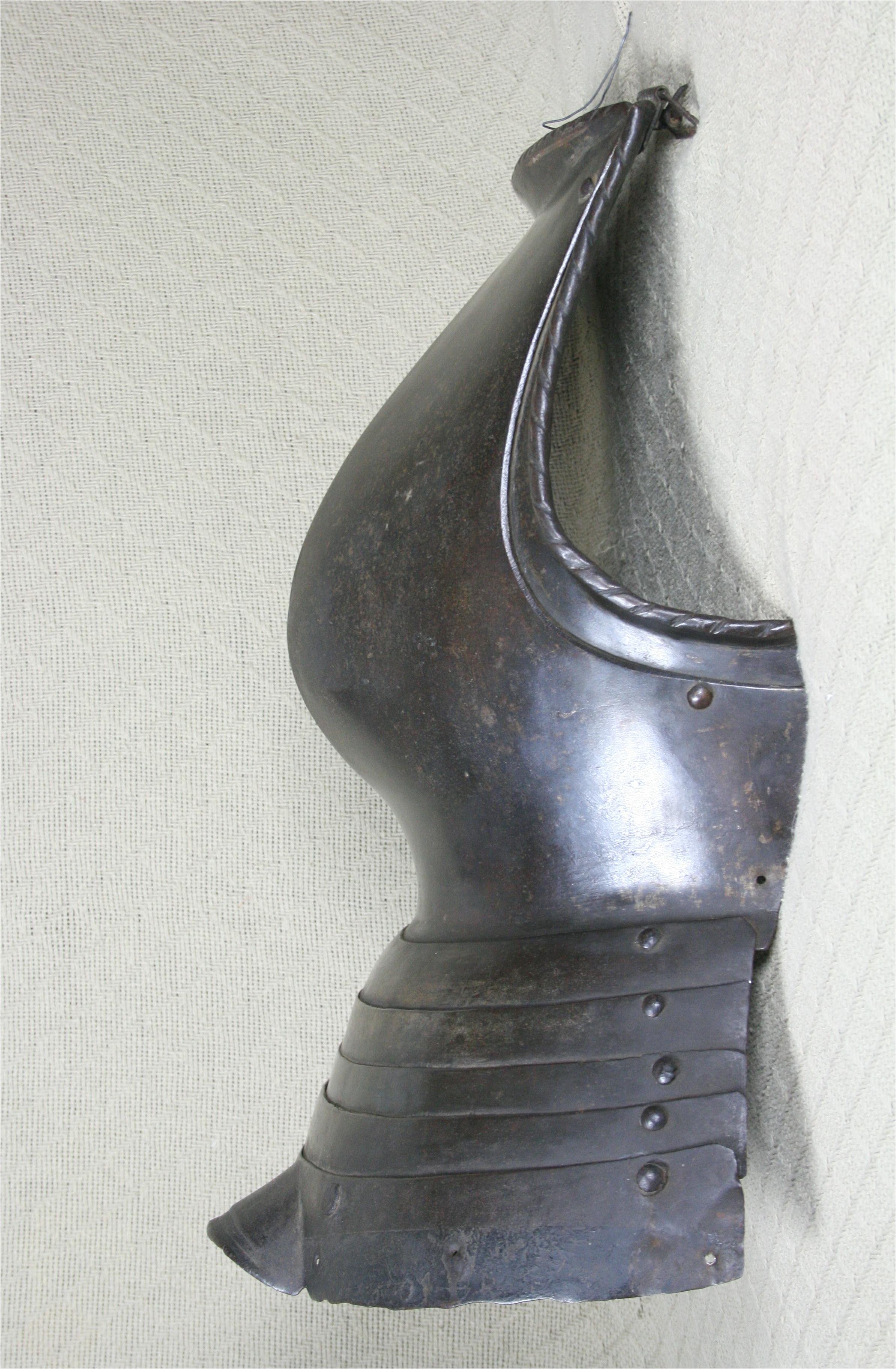

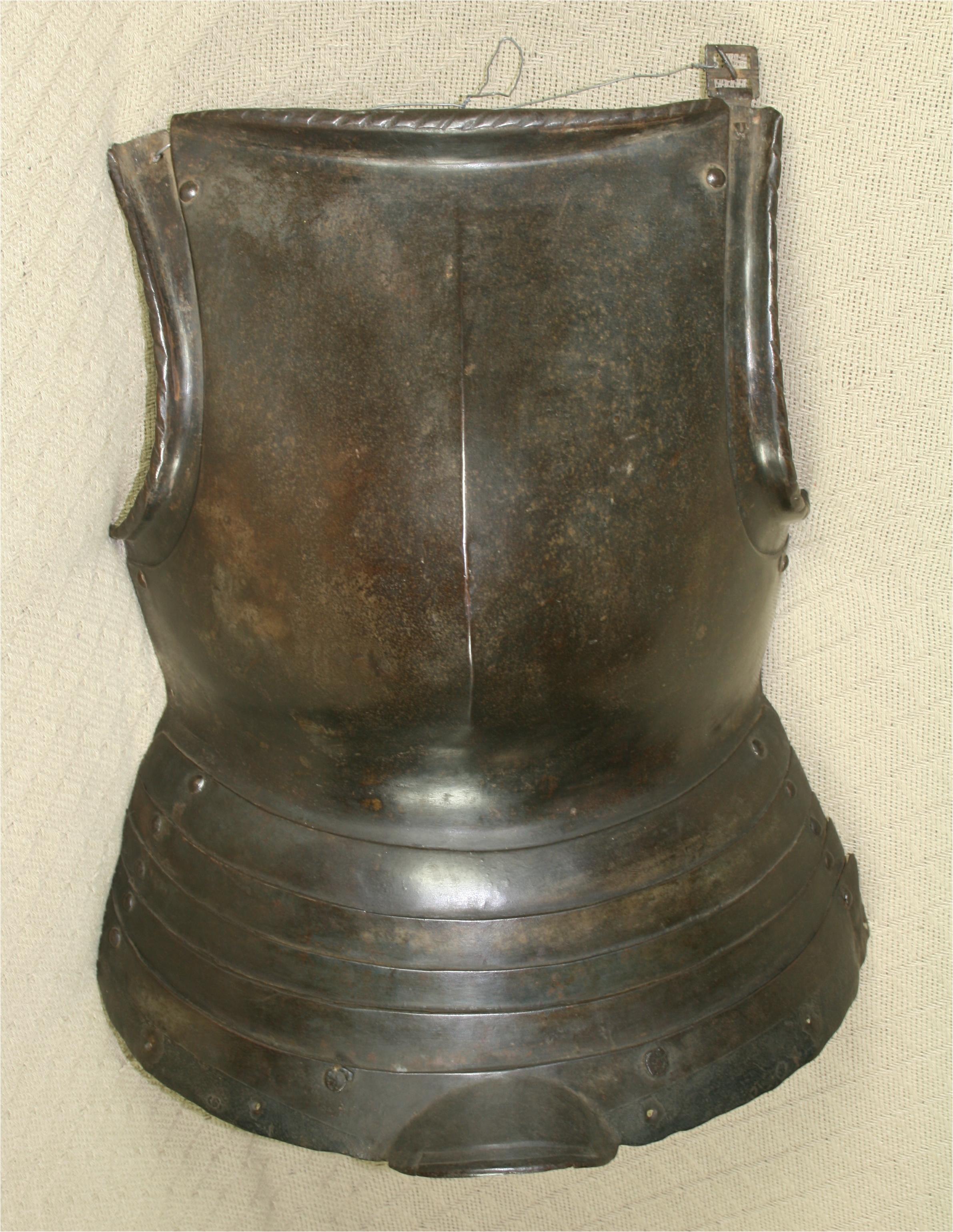

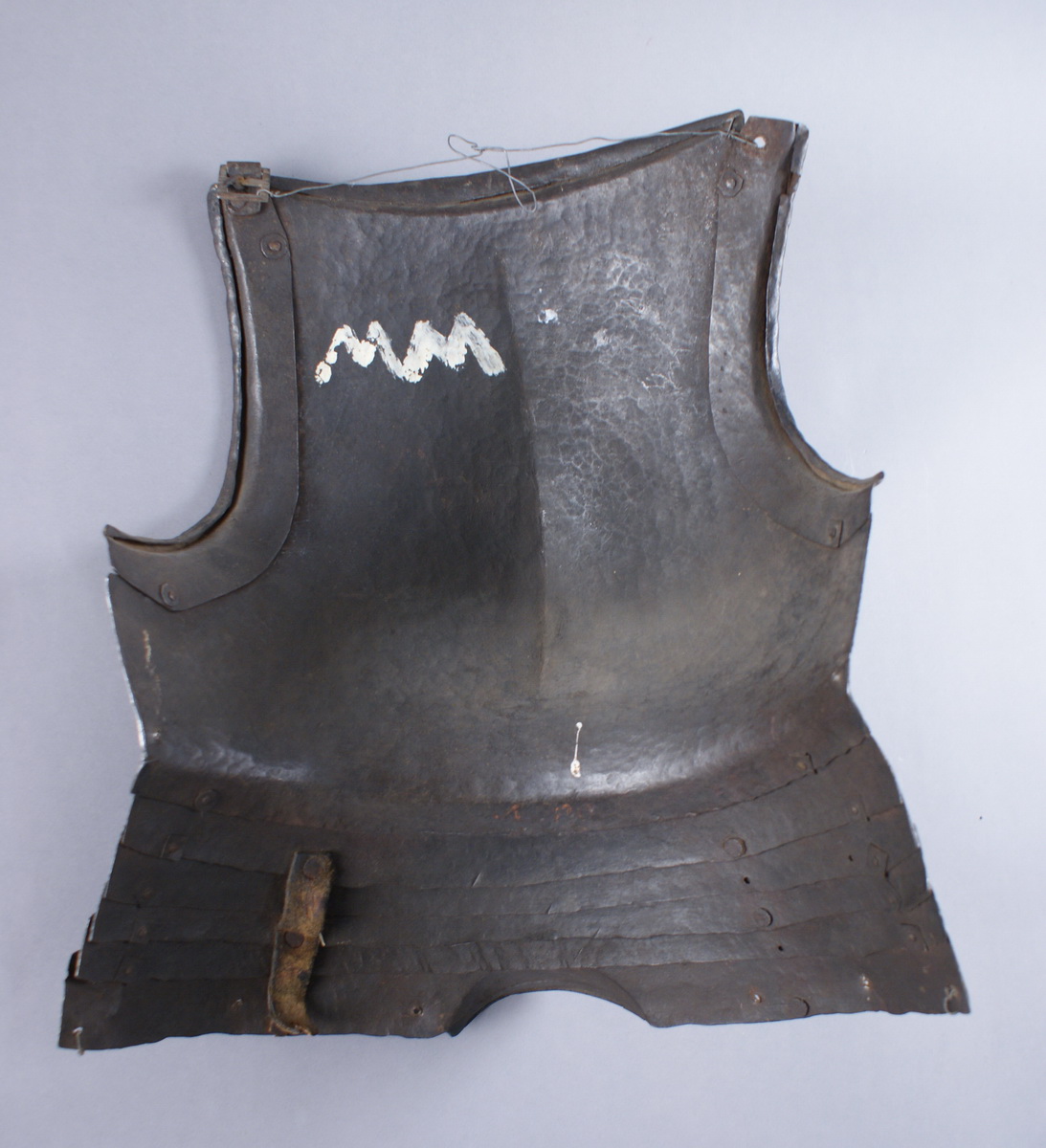

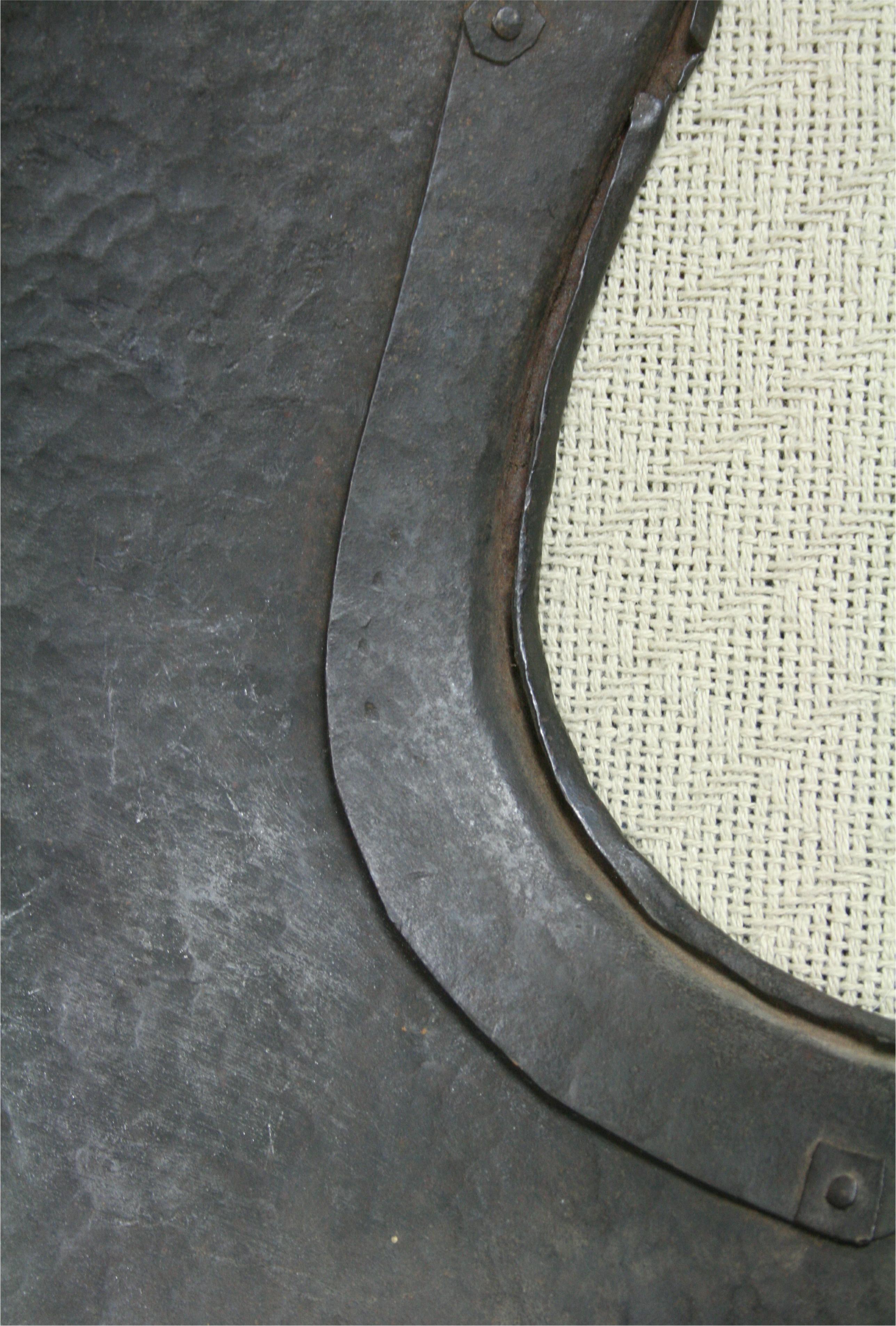

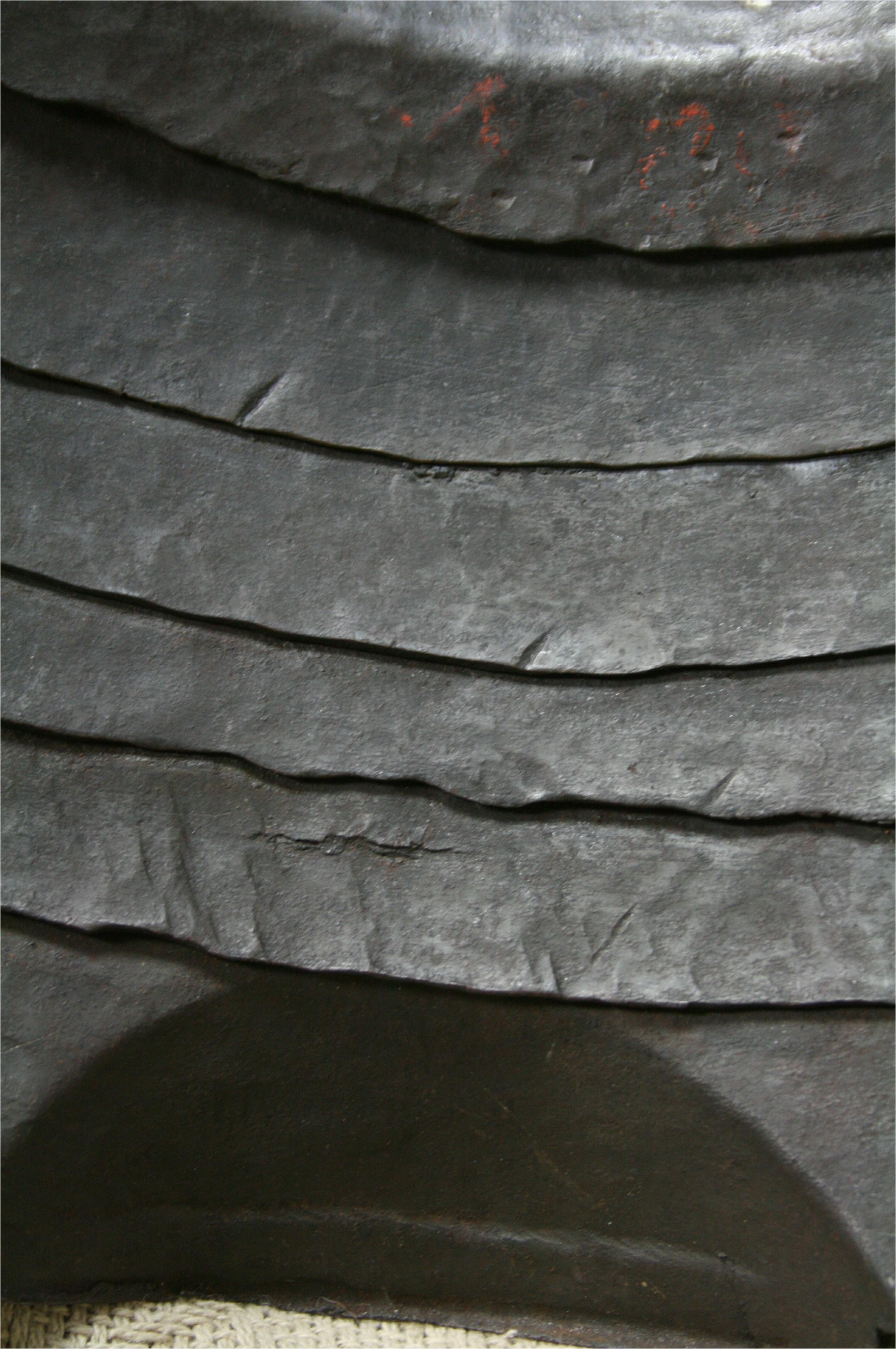

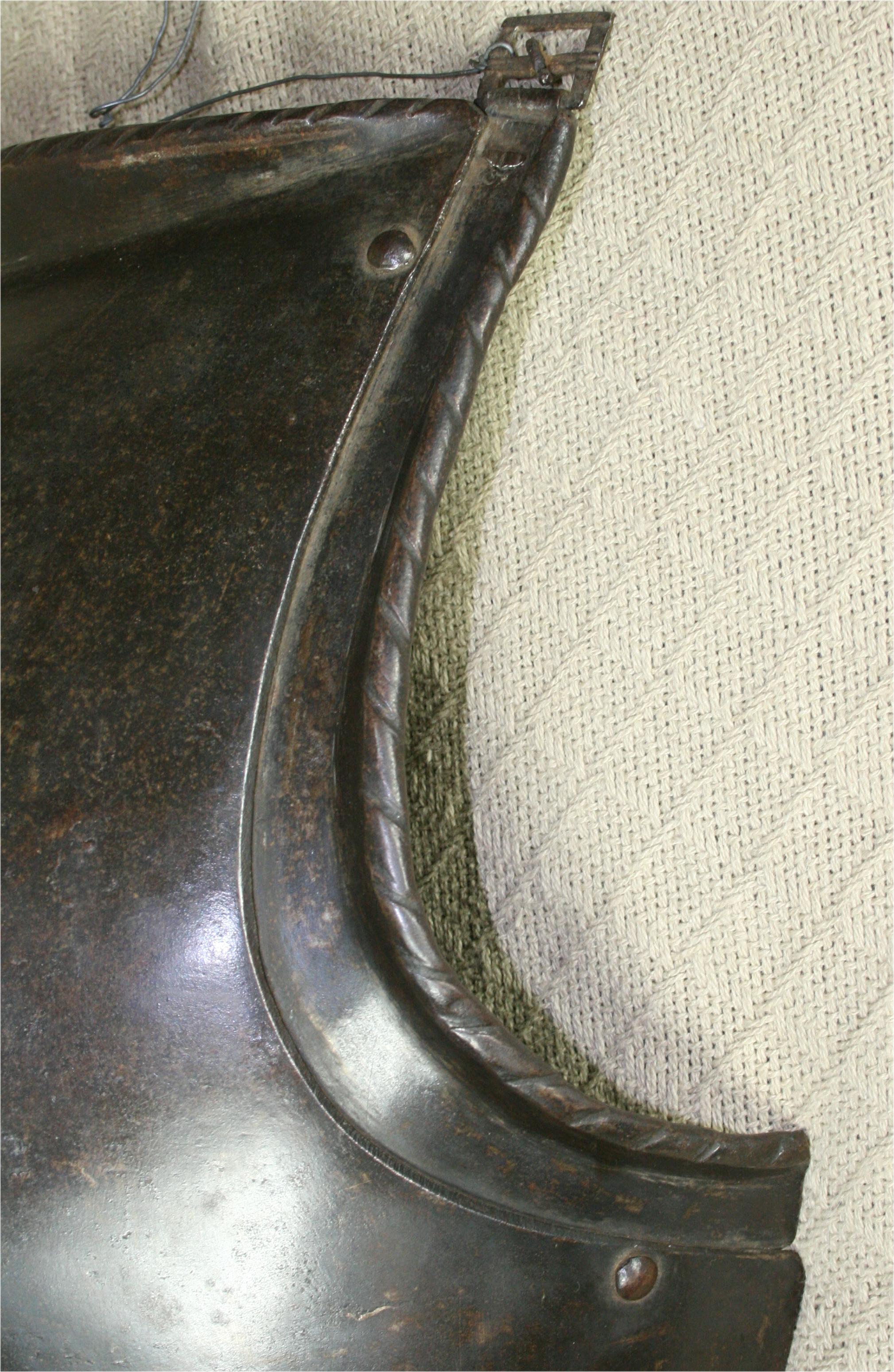

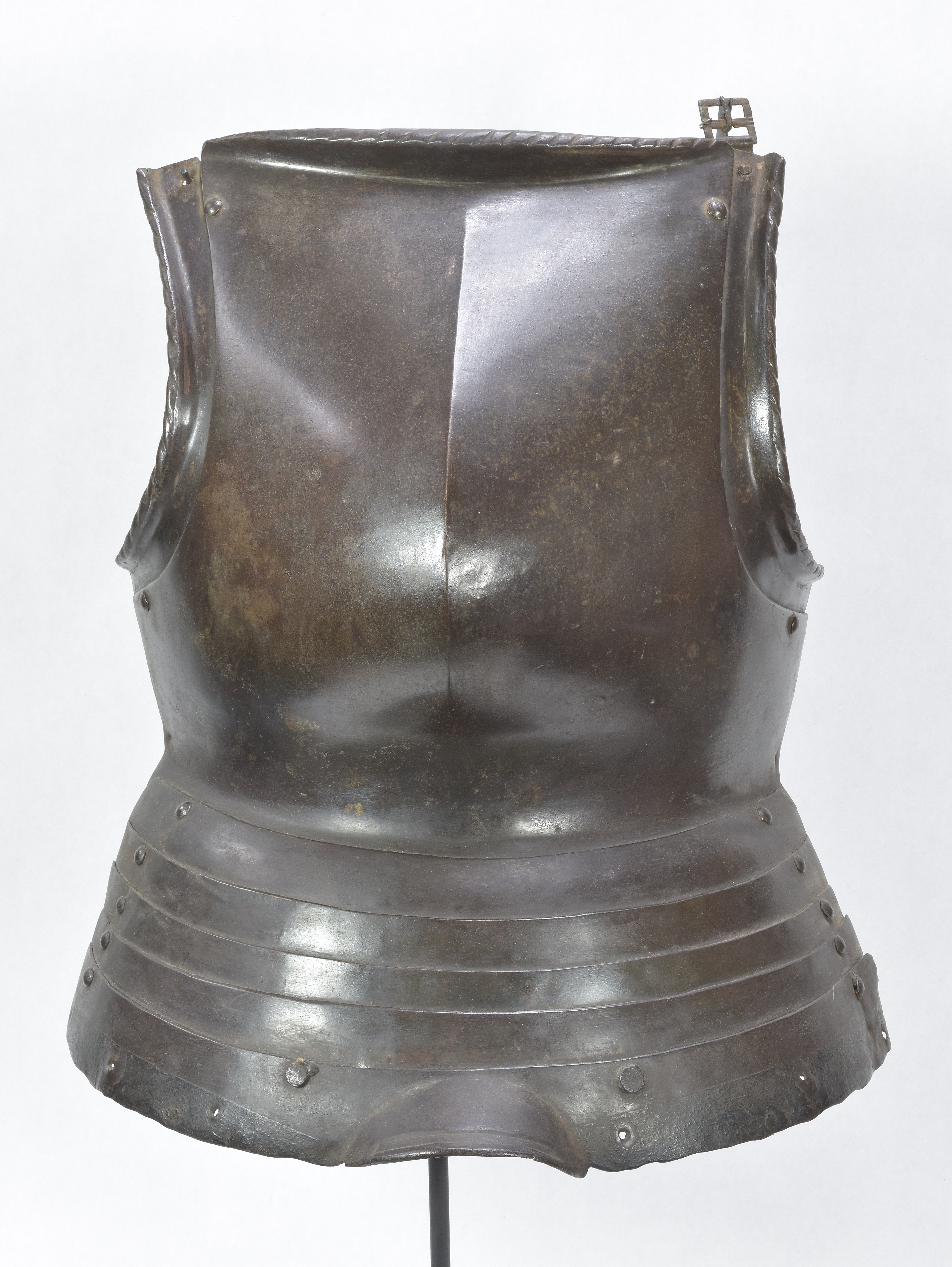

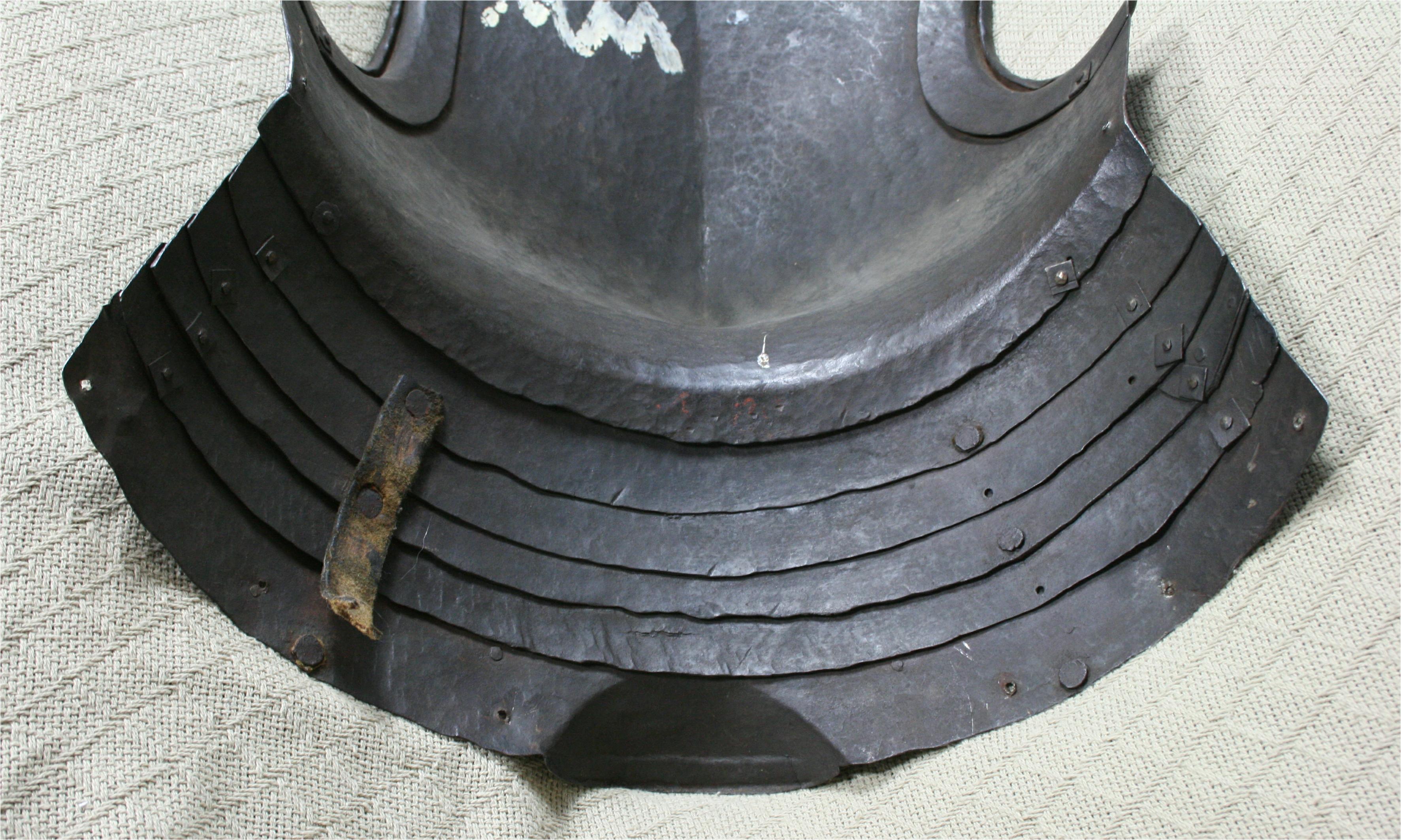

Italian or Flemish. Full rounded profile rising to a central crest over the top three quarters of the breastplate. Large inward turned roped rolls at the neck and arms. Roping with simple double lines. Arm holes formed of gussets. Slightly flared fauld of 5 narrow plates. Bottom plate flared at the center at the crotch with a rolled, roped and recessed border. Rivets remain on the bottom plate for straps to secure the tassets. Interior holes, rivets and one leather at the center of each side. One buckle remains at the top of the left gusset. The inside of the breastplate and right gusset are marked with four round punch marks. The other gusset and fauld lames may be marked with a single diagonal chisel mark. Interior with old blackened finish. Exterior with old patina. Interior painted with MM. One gusset slightly bent. There is a patch on the upper right corner of the middle fauld lame. It is riveted inside and hammered flush to the outside.
Measurements: 19 1/2 in. tall overall, breastplate 14 in. tall, 12 in. wide at the waist, 13 3/8 in. wide under the arms, 12 in. wide at the top. Fauld 16 in. wide at the bottom, one end of one lame deformed, likely 15 1/2 in. wide originally. Fauld lames vary in width. The top one is app. 1 1/2 in. tall, the second through fourth are app. 1 1/4 in. tall and the terminal lame varies between 1 3/4 and 2 in. Thickness: Breastplate .055 at the edge under the arm, generally .090-.110 over most of the body of the breastplate then thinning to .075 in near the crease. Fauld lames generally around .060, but extremely variable - there is a small area of the 4th lame near the center that is .10 in. thick.
